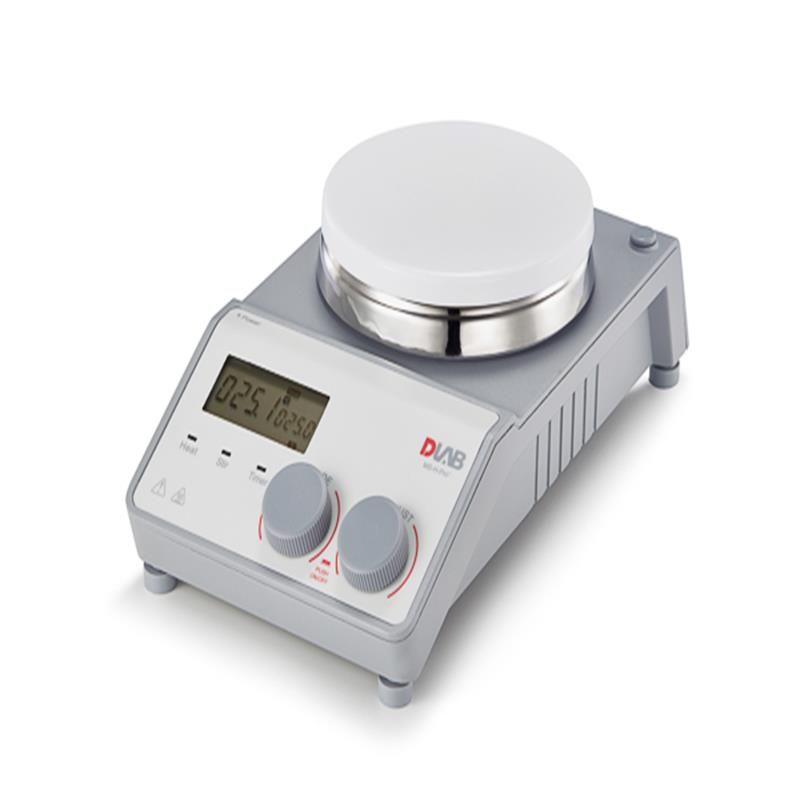

MS-H-ProT

MS-H-ProT

Features

Brushless DC motor is maintenance free and explosion-proof
Digital temperature control with max. temperature at 340°C
Digital speed control with max. speed up to 1500rpm
Max. stirring quantity of H2O at 20L
Safety circuits provide overheating protection
The “HOT” warning will flash if the plate temperature is above 50°C even when the hotplate is turned off
High-resolution LCD display shows actual temperatures and speed (MS-H-ProT displays the time also)
External temperature control is possible by connecting the temperature sensor(PT 1000) with accuracy at ±0.2°C
Stainless steel work plate with ceramic coating provides good chemical-resistant performance
Remote function provides PC control and data transmission
A wide variety of accessories are available

Specifications

Work Plate Dimension	f135mm(5 inch)
Work plate material	Stainless Steel Cover with Ceramic
Motor type	Brushless DC Motor
Heating temperature range	Room temp.-340°C, increment 1°C
Temperature display accuracy	±0.1°C
Heating power	500W
Speed range	100-1500rpm resolution±1rpm
Max. stirring quantity[H2O]	20L
Speed Display	LCD
Temperature display	LCD
