Odyssey M

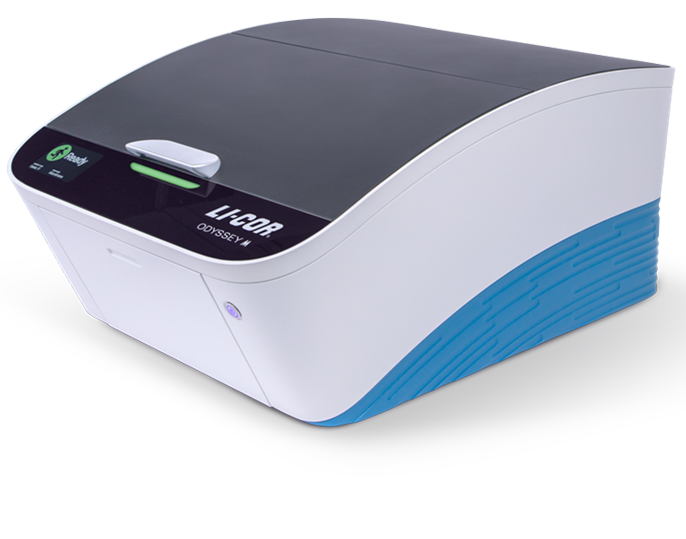

Odyssey® M Imaging System
  • Most comprehensive solution to measure protein expression
  • Line scanner
  • Stable fluorescence detection
  • Trans- and epi-illumination detection
  • Chemiluminescence detection (optional)
  • Extensive range of assays and applications
  • Expanded histology features, such as high-resolution imaging, H&E Staining, etc.
  • Additional multiplexing with visible and infrared channels
Specifications
  • Imaging area:
    • 25 cm x 18 cm
    • 15 x 11 cm (chemiluminescent)
  • Dynamic range:
    • >6 logs
  • Nine fluorescent laser channels (ex/em):
    • 800 – 785 / 820
    • 700 – 685 / 720
    • 520 – 520 / 590
    • 520A – 520 / 720
    • 520B – 520 / 820
    • 488 – 488 / 530
    • 488A – 488 / 590
    • 488B – 488 / 720
    • 488C – 488 / 820
  • Four epi-illumination channels:
    • RGB
    • 630
    • 525
    • 470
  • Four trans-illumination channels:
    • RGB
    • 630
    • 525
    • 470
  • Chemiluminescent – optional
  • Resolution:
    • 5 – 100 μm
  • Focus offset:
    • -1.00 - 5.00 mm
Line scanner
Epi-illumination
Trans-illumination
Luminescence
Applications

    Membranes

  • Western blots
    • Visible fluorescence and Near-infrared fluorescence
    • Colormetric
    • Chemiluminescent (optional)
  • Reporter gene assays
    • GFP reporter assays

    Plates

  • Multi-well plate assays
    • In-cell Western™ assay
    • On-cell Western assay
    • ELISA
    • Cell health assays
  • Reporter gene assays
    • GFP reporter assays
    • Bioluminescence

    Gels

  • Protein gels
    • Fluorescence
    • Colorimetric
  • Nucleic acid gels
    • Ethidium bromide
    • SYBR safe
  • Reporter gene assays
    • GFP reporter assays
    • EMSAs

    Slides

  • Tissue section
    • Visible fluorescence and Near-infrared fluorescence
    • H&E staining
  • Reporter gene assays
    • Bioluminescence
