Ray to
Rayto is one of the leading global providers of IVD products and solutions. Rayto’s main product lines are widely used in hospital clinics, disease control centers, blood banks, veterinary clinics, Blood banks, scientific research centers etc.
Rayto’s Products are CE marked and have got ISO 9001 and ISO13485.
- Elisa Reader
- Coagulation Analizer
- Microplate Washer
- Microplate Reader

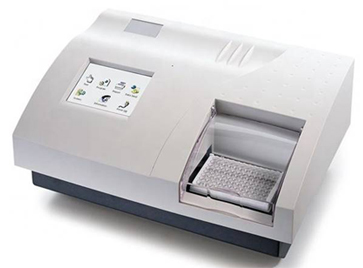

RT 2100 Microplate Reader
Features
- Fully automatic
- Easy to Use Windows OS with Touch Screen or Mouse with Large LCD Display
- Biochromatic measurement, calculation modes include ABS, Cut-Off,
- Curve, Linear, Log and exponent regression.
- Random positive control and negative control setting
- Multi-Assay feature enables up to 12 different assays on one plate
- Large memory to store up to 100 test protocols and 10000 results
- Powerful QC Function – Grubs, Westguard Rules, Levey Jennings Plot (Optional).
- Plate shaking feature
- Auto Power-ON Self Check Feature & Additional lamp saving feature
- Multiform result output including patient comprehensive report.
| Photometric Range | 0.000-4.000Abs |
| Resolution | 0.001 Abs(displayed), 0.0001 Abs(calculated) |
| Light Source | Halogen lamp, 8V/50W |
| Wavelenghs | 405,450,492,630nm, 4 more filters optional |
| Wavelengh Accuracy | +1nm |
| Band Width | 8nm |
| Calculation Method | ABS, %ABS, cut-off, linear, point to point, log, exponent, power regression |
| Accuracy | +1% or ±0.005A |
| Reading Speed | 5 secs for 96 well plate ( Single wavelength ) |
| Shaking Plate | Shaking time and speed adjustable |
| Memory | 100 tests, up to 10000 test results |
| Interface | RS-232, PSTN (optional) |
| Display | 6" LCD |
| Input | Touch panel or mouse |
| Output | External printer(optional) |
| Net Weight | 8KG |
| Dimensions | L X WX H (mm) 460 x 330 x 200 |
| Power Supply | AC 110V-220V ±10%, 50-60Hz |

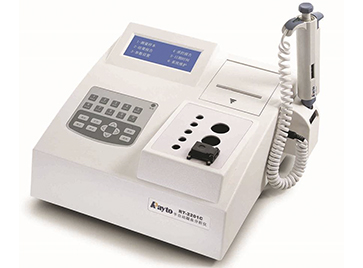

RT-2201C Coagulation Analizer
Features
- Easy keypad operation with LCD Display
- Internal thermal-sensitive printer
- Reagent position the magnetic rotor
- Scattered light principle and percentage analysis ensures good results
- Open reagent with low consumption, close reagent on request
- Large memory to store up to 6000 test results
- QC and calibration program incorporated
- Auto power-ON self check
- Multi-Language software available on request.
- Electronically linked pipette Optional
| Principle | Scattered light with percentage analysis |
| Test Channel | 1 channel |
| Light Source | Durable LED detector |
| Test Time | Normally 20-60 secs, Maximum time up to 600 secs |
| Sample Position | 5 positions |
| Reagent Position | 2 positions (1 magnetic rotor included) |
| Minimum Reagent | Consumption 30u1 for APTT, 50u1 for TT/FIB/PT |
| Position Warming-up | 37t(±0.5c) |
| Memory | 6000 test results |
| Interface | RS-232 |
| Display | LCD display |
| Input | Easy operation keypad |
| Output | Internal printer |
| Power Supply | AC 110V/220V±10%, 50-60Hz |
| Net Weight | 5KG |
| Dimensions | LxWx H (mm) 270 x 270x 120 |

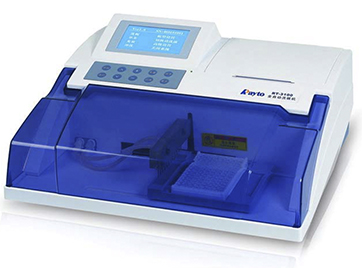

RT-3100 Microplate Washer
Features
- Fully Automatic
- User-Friendly OS with Large LCD Display
- Washes Flat, U and V-Bottom strips and plates
- 12-way and 8-way manifold, automatic and manual positioning
- Large memory , up to 100 wash protocols can be programmed
- Multi-Channel, 1 or 3 (optional) for wash,1 for rinse and 1 for waste
- Plate shaking functions, time and speed are adjustable
- Two 96-Well plate incubation positions (optional)
- Liquid Level Detection and Alert Function
- Easy Maintenance.
| Plate Mode | 96-148-well plate or strip |
| Residual Volume | < 1ul |
| Washing Volume | 10-3000W/well, 1p1 by step |
| Washing Cycle | Maximum 99 cycles |
| Strip Washing | 1 to 12 strips programmable |
| Soaking Time | 0-24hours |
| Display | Large LCD |
| Wash Channels | 5 channels, 1 or 3 (optional) for wash, 1 for rinse and 1 for waste |
| Memory | 100 washing protocols |
| Interface | RS-232 |
| Power Supply | AC 110/2201/±10%, 50-60HZ |
| Net Weight | 13 Kg |
| Dimension | 450MMx390MMx190MM |

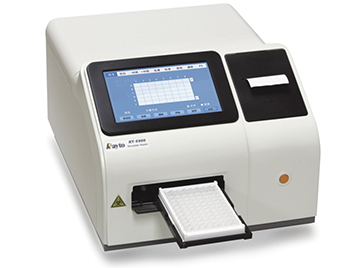

RT-6900 Microplate Reader
Features
- 7” color LCD touchscreen with In-Built Printer
- 8-Channel optical fiber system, 5 seconds reading for whole plate
- Supports single/dual wavelength measurement
- Plate-shaking function, speed and frequency adjustable
- Up to 100 programs and 10,000 sample results storage
- Multi-Assay enables up to 12 different assays in one plate
- Auto self check when Power-ON
- Random positive and negative control setting
- Save data automatically in case of power outage
- Lamp saving function.
| Absorbance Range | 0-4.000Abs |
| Resolution | 0.001 Abs(displayed), 0.0001 Abs(calculated) |
| Light Source | Halogen lamp 6V/19W |
| Optical System | 8-channel optical fiber system |
| Wavelengths | 4 standard fitters: 405nm, 450nm, 492nm, 630nm, 3 more fillers optional |
| Wavelength Accuracy | ±2nm |
| Band Width | 8± 2nm |
| Calculation Method | ABS, Cut-off, Multi-percent, Percent log, Linear, Exponential, Index, 4PL Regression, etc. |
| Methodologies | End-point, Fixed-time, Kinetic |
| Type of Microplate | Standard with 96-well or other kinds of microplate and strip |
| Reading Speed | 5 seconds for 96-well plate(single wavelength) |
| Shaking Plate | Shaking time and speed adjustable |
| Memory | Up to 100 programs and 10,000 sample results storage |
| Printer | Internal thermal printer, external printer optional |
| Interface | USB port, LAN, SD card slot, RS-232 |
| Power Supply | AC100-240V, 50Hz/60Hz |
| Dimension(mm) | 425(L)x310(W)x215(H) |
| Weight | 12kg |
