RE200

Features

Large LCD digital display with heating temperature, rotation speed, clockwise and Anti-clockwise, time information.
One-click automatic motor lifting (stroke 180mm), smooth and silent.

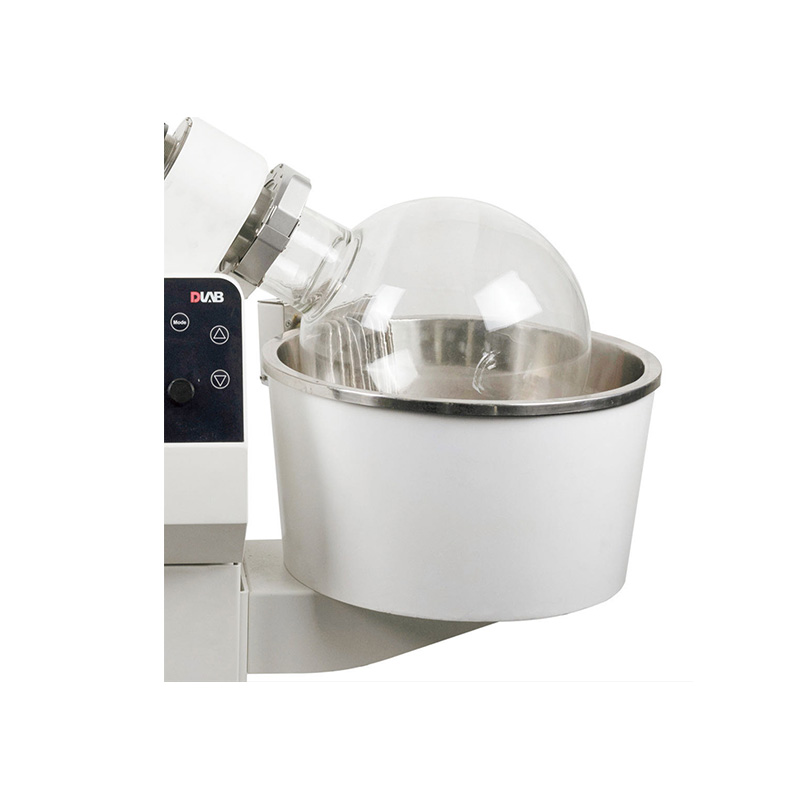

Water / Oil heating bath with wide temperature range from room temp to 180°C
Speed range from 10 to 150rpm, and interval operation in clockwise and anticlockwise directions for drying process

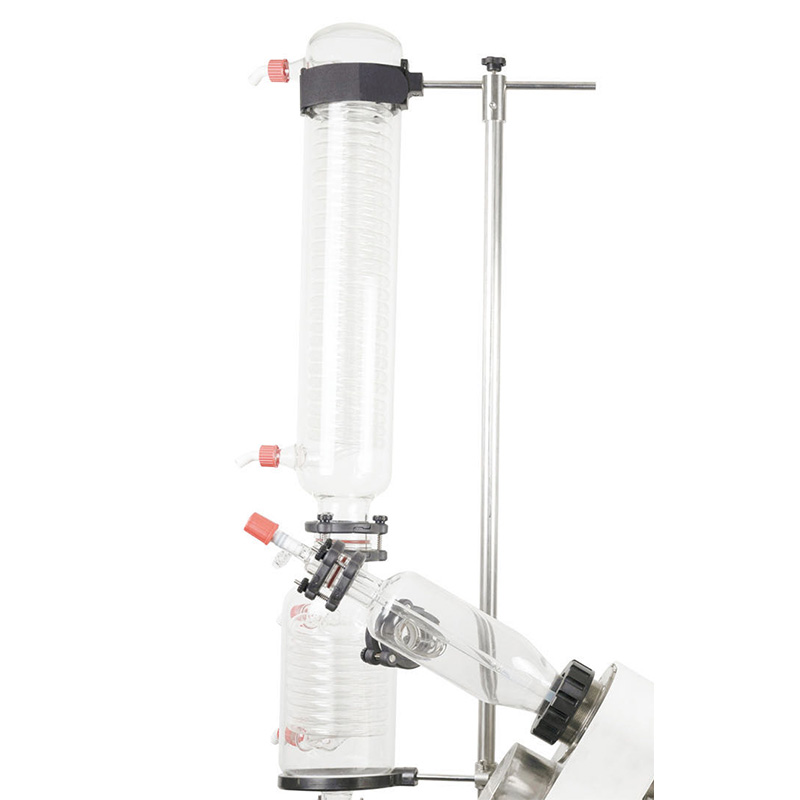

Double-layer high-efficiency condensing tube with large condensation area and strong evaporation capacity, ensuring efficient sample recovery
Patented PTFE double sealing ring with excellent sealing performance
A switching valve for continuous collection without compromising the system vacuum and solvent distillation.

Specifications

Temperature Range	Room temp. ~180°C (both water and oil)
Rotation Speed	10 - 150RPM
Evaporation Capacity	Max.4.0L/h (Water Vapor Volume)
Ultimate Vacuum	Less 2.6hpa
Sample Flask Volume	Round Flask 20L

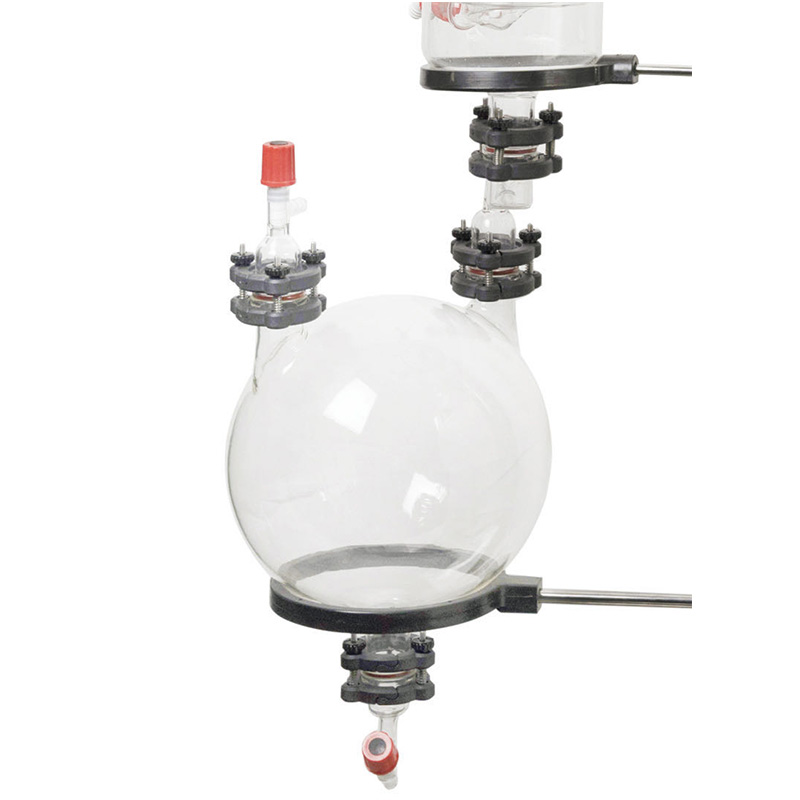

Receiving Flask Volume	Round Flask 10L with Drain Valve
Condenser	Two-section vertical triple serpentine condenser, cooling surface 1.2m2
Display	LCD (temperature/speed/clockwise and Anti-clockwise/time)
Safety Features	Motor over-current protection, Residual Current Device, lifting overload protection, Boil-dry protection, over-temperature protection
Heating Bath Size	f450×240mm
