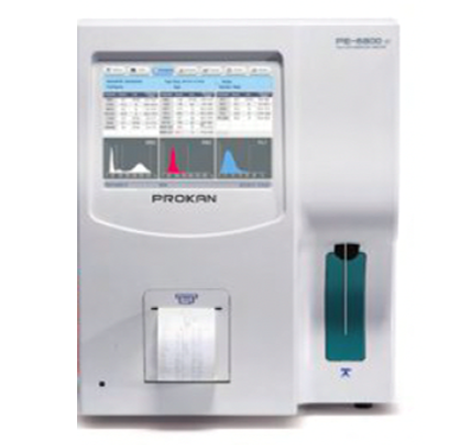

Methodology	Electrical resistance for counting, cyanide free method for hemoglobin
Sample volume
Venous Mode	9.6μL; Pre-diluted Mode: 20
Operation mode	Touch screen operation also support USB keyboard & mouse Based on Linux system
Throughput	30 samples/hour, 24 hours work with auto standby
Storage	50000 sample results inclusive of the histograms
Species of animals 12 Species	Dog/ Cat/ Horse/ Cow/ Sheep/ Monkey/ Mice/ Pig/ Rabbit/ Gallus/ Duck/ Goose ; 5 User-defined species
Calibration mode	Manual calibration and auto calibration
Display	8" LCDresolution :800x600
Language	Multi-Ianguage supported, user can on-line switch system language
Interface	Work 4 xUSB, 1xRS232, 1 x ethernet, 1 xVGA (for external monitor)
Power supply	AC100-240V 50/60HZ
Parameter	3-part differential of WBC; 20 parameters (WBC, LYM#, MID#, GRAN#, LYM%, MID%, GRAN%, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-SD, RDW-CV, PLT, MPV, PDW, PCT, P-LCR) + 3 color histograms (WBC/RBC/PLT)

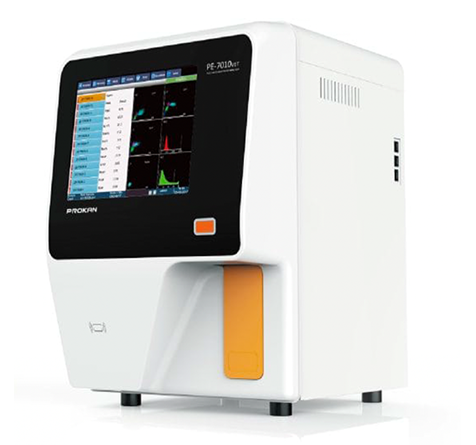

Principles RBC/PLT	Electrical impedance method; HGB: colorimetric method; WBC: Semiconductor laser flow cytometry method
Throughput	60 samples per hour
Display	10.4'' touch screen display
Sample consumption	Venous / Capillary / Pre-diluted mode≤20μL
Working environment	Temperature: 10-30℃, Humidity≤70%
Test mode	CBC+DIFF, CBC
Dimension	364mm*498mm*431mm
Calibration	Auto calibration, Manual calibration
Weight	26.5kg
QC mode	L-J, X-B
Parameters	WBC,Neu#, Lym#, Mon#, Eos#, Bas#, Neu%, Lym%, Mon%, Eos%, Bas%, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-SD, RWD-CV, PLT, MPV, PDW, PCT
Storage	50,000 samples results inclusive scatter diagrams and histograms
Species of animals	Dog, cat, horse, pig, cattle, sheep, rabbit, monkey, rat, mouse and 10 user-defined species.
Test mode	CBC+DIFF, CBC
