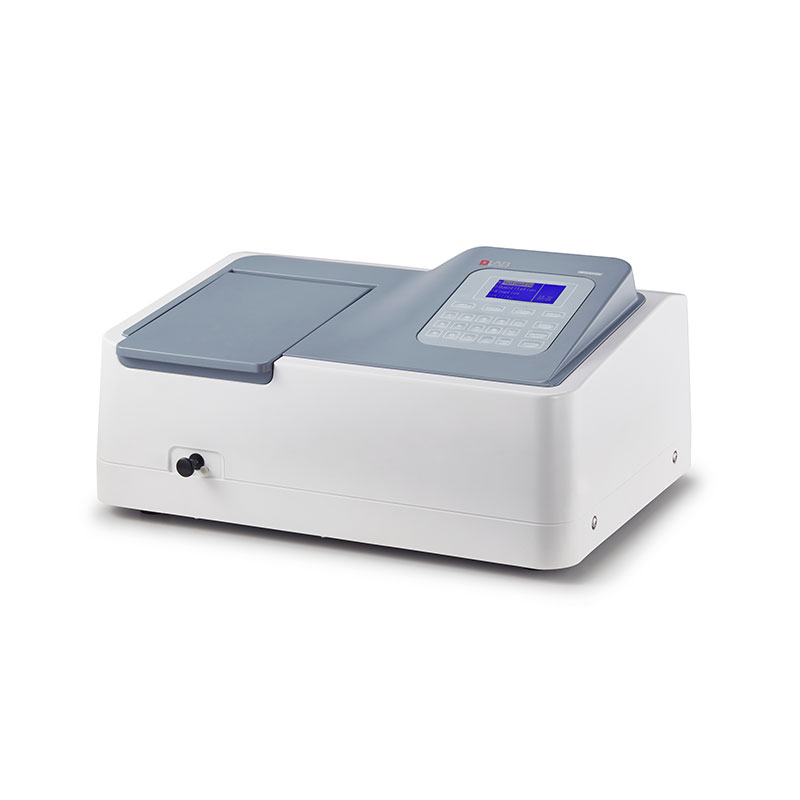

SP-UV1100

SP-UV1100

Features

User Friendly Operation and Information Rich LCD Display The large 128 x 64 dots, backlit LCD screen with adjustable brightness control displays a large array of data also in graphical format.
On-Board Data Storage The System can save the test results, up to 200 groups of data and 200 standard curves in the RAM memory.
Data can be restored after a sudden power failure.
Auto setting wavelength To set wavelength automatically to calibrate the system through arrow keys to avoid operation errors.
Automatic Switching Tungsten& Deuterium lamps switching is automatic. Selectable from a wavelength range of 190 to 1100nm.
PC control through application software The spectrophotometer is fully equipped and capable of executing all functions in stand-alone mode. The optional application software 'Wave Professional' provides computer control for the spectrophotometer(through the built-in USB port), apart from other functions such as spectrum scan, Time scan(kinetics), multiwavelength scanning & Nucleic Acid /Protein measurement. (SP-V1100/SP-UV1100)
Large sample compartment To accommodate 5–100mm path length cuvettes with optional holders. A variety of optional accessories are available

Specifications

Optical System	Single Beam
Light Source	Tungsten lamp&Deuterium lamp
Spectral Bandwidth	2.0nm
Wavelength Range	190-1100nm
Photometric Range	-0.3-3.0A, 0-200%T
Stability	=0.002A/h @500nm (after preheat 2 hours)
Stray Light	=0.05%T@220&360nm
Sample Compartment	4-position,10mm pathlength cuvette
Display	LCD
Output	USB Port&Parallel Port (Printer)
