The leader of POCT (Point of Care Testing), Boditech Med Inc
Boditech Med has been established as an antibody developing and manufacturing business in 1998. We’ve changed our business direction to In-Vitro diagnostic market in 2000 considering potential of the market segment. Since then, we have reached current position as a leading company in POCT market.
Boditech Med has dominated China POCT market for infection diseases market in the mid 2000’s and providing In-Vitro diagnostic solution over the 120 countries around the world. Also, 80 million of IVD tests have been implemented with our 55,000 IVD analyzers. Boditch Med is constantly striving to become a global In-Vitro diagnostic company realizing the value of respect for life.
- Immunoassay Analyzer
- Total Haemoglobin Concentration Measurement
- ichroma™ II
- ichroma™ III
- Hemochroma PLUS

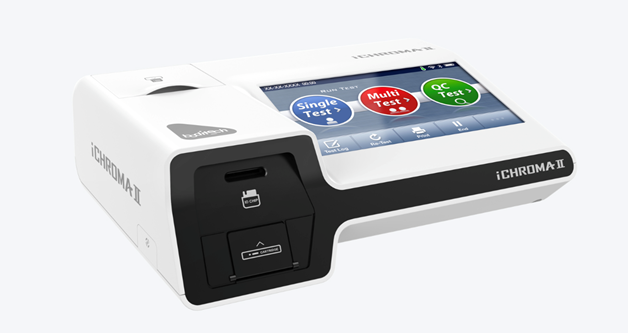

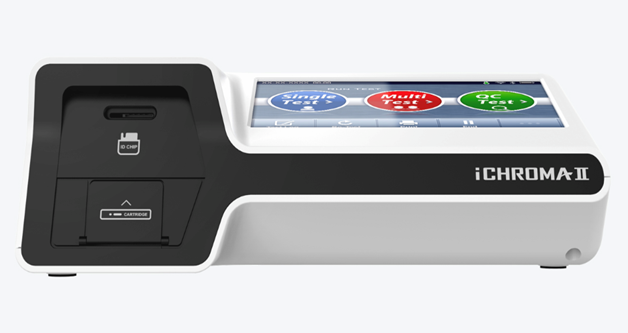

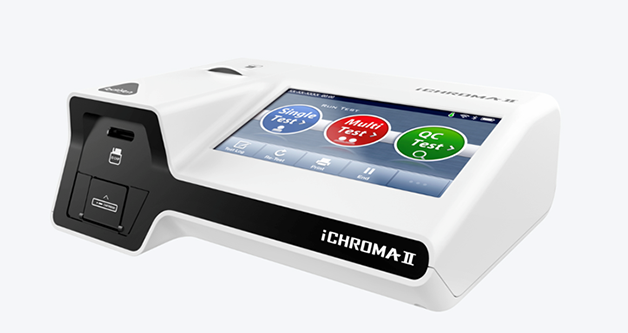

Advanced compact immuno-Analyzer
A compact and easy-to-use, fluorescence based POCT immunoassay analyzer ichroma™ II is a compact, easy-to-use diagnostic immuno-analyzer to measure the presence of various biomarkers for cardiac, cancer, hormones, infectious diseases, autoimmune diseases, and metabolic diseases.
Specifications
- Specifications: 276 x 220 x 91 mm, 1.3 kgs, 100 – 240V AC, 50-60Hz, Internal & external battery
- QC / Calibration: System check cartridge & Internal & external controls
- Interface7” touch screen, Built-in thermal printer, USB port / Ethernet / SD card slot, LIS/HIS compatible
- Memory: 1,000 patient results. 1,000 QC results, 100 User IDs
- Throughput: Up to 30 tests/hour

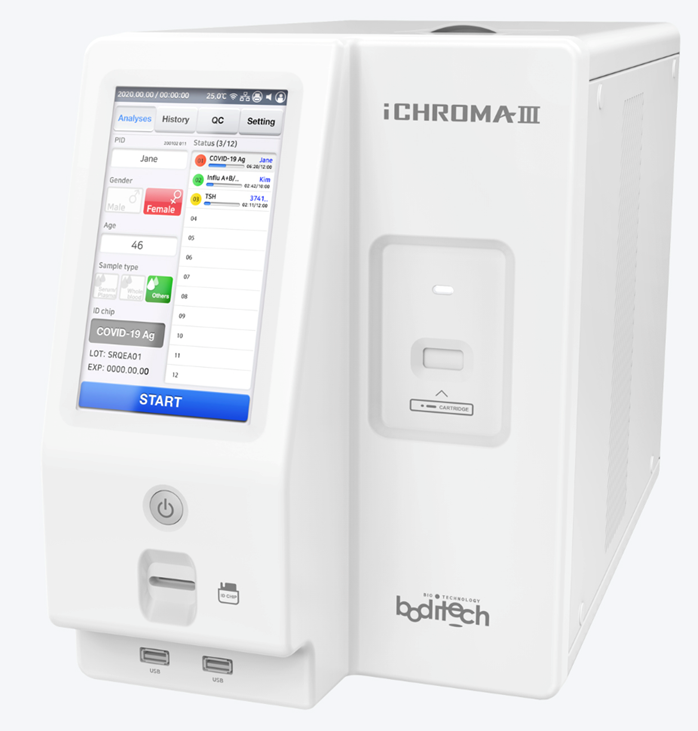

High-throughput immuno-analyzer that enables simultaneous testing for various parameters ichroma™ III accepts cartridges for various biomarkers in random sequence and processes them in a preset temperature, even combines test parameters with differing incubation period. The user will prepare each cartridge before inserting it to the system, one at a time.
Specifications
| Model | ichromal" Ill |
| Dimensions | 240 mm (L) x 465 mm (W) x 341 mm (H) |
| Weight | 11 Kg |
| Analyzer input | 100-240V AC, 50-60Hz 1.8A |
| User Interface | 7" Touch-screen LCD |
| Data Output | Internal Printer/RS-232 port |
| Operating temperature | 1St to 35t |
| Connectivity | RS-232 4 USB port / LAN port SD card slot |
| Memory | 2,000 Patients 2,000 QC Results 1,000 System Check 500 ID chip info |
| Capacity | 12 assays in one test set |
Total Haemoglobin Concentration Measurement

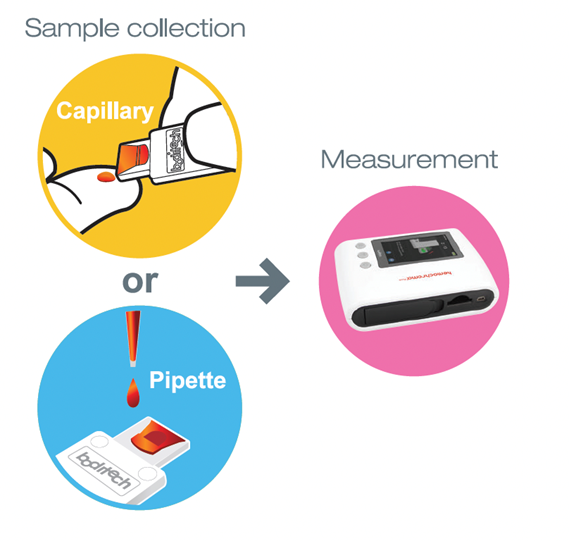

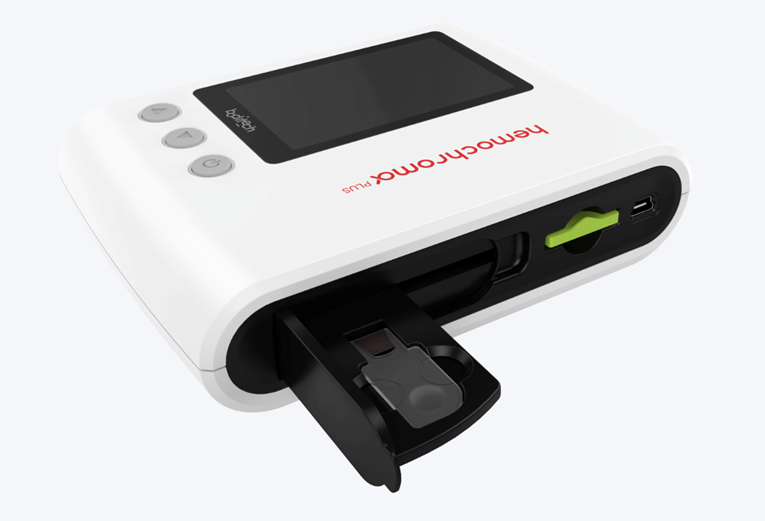

Hemochroma PLUS is a handheld device that can run tests for anemia. One uses a disposable test cuvette to pick up sample blood from the fingertip. It accommodates tube bloods with a pipette. Each test takes 3~5 seconds and the user can transmit.
Applications
- Screening Anemia
- Blood banks
- Transfusion Centers
- Mother and child health centers
- Dialysis Centers
Specifications
| Specifications | Values |
|---|---|
| Principle | Spectrophotometry |
| Sample | Whole blood |
| Sample volume | 12 -15 uL |
| Detection range | 0.5 - 27 gidL |
| Reading time | Approx. 3 sec. |
| Data storage | 1,000 results |
| Power | 4 x AA batteries or power from USB |
| Dimensions | 106 x 151 x 39 mm |
| Weight | 215 g |
| Calibration | Calibration information in ID chip |
