Diatron develops, manufactures and markets hematology analyzers, clinical chemistry analyzers, and associated reagents for human medical and veterinary use. The company was founded in Budapest, Hungary over 30 years ago and is one of the top 5 global hematology analyzer manufacturers. Since its inception, Diatron has been at the forefront of laboratory diagnostics.

Today, Diatron’s product range includes hematology analyzers, hematology reagents (both for our own and other manufacturers’ analyzers), hematology control material, clinical chemistry analyzers, clinical chemistry reagents and clinical chemistry controls.

The brand name of Diatron has been established throughout the world as a result of our capability for manufacturing high quality and extremely reliable instruments, which has resulted in our products being sold and marketed in more than 100 countries.

Today, there are more than 40,000 Diatron clinical chemistry and hematology analyzers in laboratory use, and our customer base continues to grow stronger year after year.

• Abacus Junior 30
• Abacus 380
• Abacus 5

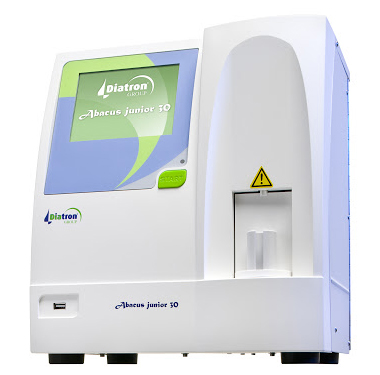

Abacus Junior 30

The Abacus Junior 30 is small in size but without compromising quality. It is packed with features, is easy to use, lightweight and has a practical color touch screen, thus making it an ideal choice for the smaller clinic, laboratory or physician office.

Specifications

• Throughput: 30 tests/hour
• Parameters: 22 hematology parameters, including 3-part differential: WBC, LYM, MON, GRA, LYM%, MON%, GRA%, RBC, HCT, MCV, RDW, HGB, MCH, MCHC, PLT, PCT, MPV, P-LCC, P-LCR, RDW-CV, RDW-SD, PDW-CV, PDW-SD
• Impedancemethod
• Diatro•ECO Reagent Pack: Up to 145 measurements
• Sample volume: 25 μl of whole blood
• Sampling method Open tube system with automatic sample rotor
• 3 cyanide-free reagents: Diluent, Lyse, Cleaner
• Diatro•ECO Reagent Pack: Up to 145 measurements
• Data storage capacity: Maximum 10 000 results, including RBC, PLT, WBC 3-part histograms and full patient data
• Built-in thermal printer(B/W, 56mm wide paper)
• Operating environment:Temperature: 15-35°C; relative humidity: max 80% (non-condensing)
• User interface: Color TFT touch screen, with separate start button
• User languages: English, German, French, Spanish, Italian, Portuguese, Indonesian, Czech, Polish, Vietnamese, Russian, Greek, Romanian, Hungarian
• Size (Width x Depth x Height)32 cm x 37 cm x 27 cm, 12” x 14” x 10”
• Weight: 10 kg, 21 lbs

Download Catalogues

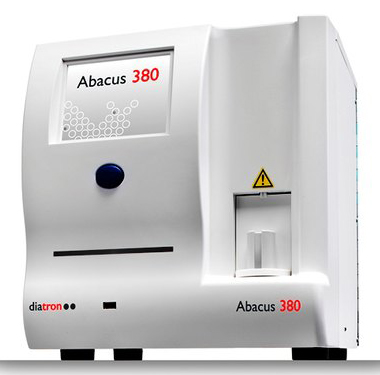

Abacus 380

The Abacus 380 is the flagship product of Diatron’s 3-part differential hematology analyzers. With an 80 test/hour throughput, small footprint, lightweight and user-friendly color touch screen, it is ideal for laboratories, clinics, and physician practices alike.

Specifications

• Throughput: 80 tests/hour
• Parameters: 22 hematology parameters, including 3-part differential: WBC, LYM, MID, GRA, LYM%, MID%, GRA%, RBC, HCT, MCV, RDW, HGB, MCH, MCHC, PLT, PCT, MPV, P-LCC, P-LCR, RDW-CV, RDW-SD, PDW-CV, PDW-SD
• Volumetric Impedancemethod
• Sample volume: 25 μl of whole blood in normal 3-part mode, 50 μl of pre-diluted blood
• Sampling method Open tube system with automatic sample rotor
• 3 cyanide-free reagents: Diluent, Lyse, Cleaner
• Diatro•ECO Reagent Pack: Up to 145 measurements
• Aperture diameter: 70 μ (RBC/PLT); 100 μ (WBC)
• Clog prevention: High-voltage burst on aperture in each analysis cycle and high pressure back-flush
• Data capacity: 10 000 results, including RBC, PLT, and WBC 3-part histogram
• Operating temperature: 15—30 °C (59—86 °F). Optimal temperature is 25 °C (77 °F)
• User interface: Easy-to-use, menu driven with touchscreen, separate START button and status LED
• User languages: English, Indonesian, German, Italian, French, Czech Portuguese, Polish, Spanish, Vietnamese, Russian, Greek, Romanian, Hungarian
• Size (Width x Depth x Height)33 cm x 31 cm x 38 cm, 13” x 10” x 15”
• Weight: 12 kg, 26 lbs

Download Catalogues

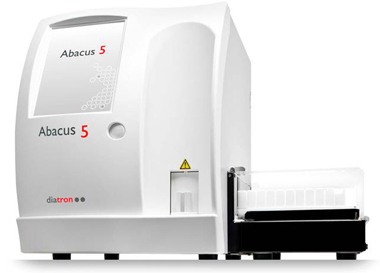

Abacus 5

The Abacus 5 system is a compact, bench top, 60 test/hour, 5-part WBC differential analyzer with two sampling modes: a cap piercing mode for closed tube sampling and another for open tubes.

Specifications

• Throughput: 60 tests/hour
• Parameters: a CBC+5 DIFF mode (26 parameters) - 2 histograms: RBC, PLT; 2 scattergrams: 4 diff, WBC, LYM, MON, NEU, EOS, BAS, LYM%, MON%, NEU%, EOS%, BAS%, RBC, HCT, MCV, RDW (sd/cv), HGB, MCH, MCHC,PLT, PCT, MPV, PDW (sd/cv) P-LCC, P-LCR
• Laser light scattering technology for 5-part WBC differential
• Sample volume: 110 μl of whole blood
• Closed and open tube sampling, optional autosampler
• 3 cyanide-free reagents: Diluent, Lyse, Stopper
• Data storage capacity: 100,000 records
• Operating environment: Temperature: 15–30 °C
• Relative humidity: Max 80% (non-condensing)
• Multilingual user interface: English, French, Spanish, Croatian, Hungarian, Italian, Polish, Portuguese, Russian, Turkish, Chinese, German, Greek
• Size (Width x Depth x Height)40 cm x 50 cm x 45 cm, 16” x 20” x 18”
• Weight: 35 kg, 77 lbs

Download Catalogues
