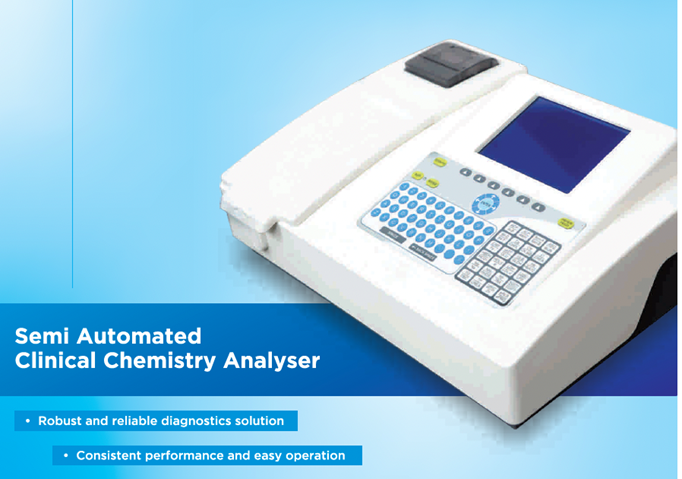

INK-50 Mini
Semi-Automated Clinical Chemistry Analyzer
Technical Specifications
PHOTOMETRIC MODULE
- Seven Narrowband Interference Filters
- Filter Wavelengths: 340, 405, 505, 546, 578, 630 and 670nm (1 open position for optional filter)
- IAD process ensures long filter life
- Wavelength Accuracy : ±2nm
- Silicon Photo Diode detector
- Absorbance Range : 0.0 - 3.0 A
- Resolution : 0.0001 Absorbance Units
- Photometric Drift : < 5 mAbs/30min
- CV : < I%
TEMPERATURE OF FLOW CELL/CUVETTE
- 25°C. 30°C, 37°C
- Temperature Stability : ± 0.2°C
DISPLAY
- 5.7 Inch LCD display screen
- High Contrast Display
KEYBOARD
- Tactile touch QWERTY keypad
- Visual indication on keypad during aspiration
PRINTER
- Internal 57mm thermal printer with full graphics printing
MEASURING MODULE
- Dual mode ( Flow cell & Cuvette)
- High quality Quartz flow cell for precise measurements
- 30 pi Flowcell volume
- Peltier-controlled reaction temperature
- External cuvettes (10mm path length)
REACTION VOLUME
- Minimum aspiration volume - 300p1
- Maximum aspiration volume - 5m1
ANALYSIS METHOD
- Endpoint, Fixed time and Kinetic
- Sample blanking and Reagent Blanking
- Direct Absorbance measurement mode
TEST PROFILES
- User defined 10 Test Profiles
- 10 tests can be added in each profile
TEST CHANNELS
- 48 dedicated assays
- Direct access keys for dedicated assays
- Open channel capability
- 200 programmable channels
DATA MANAGEMENT
- Storage of up to 10,000 test results
- Stores 30 days QC for each Assay
- Reagent Blank storage
REPORTS
- Search by date, sample ID or Test Name
- Calibration Reports, QC results
UNITS
- 15 pre-defined measurement units
QC AND CALIBRATION
- Daily and monthly QC with data archiving.
INTERFACE
- RS 232 Port
- USB Port
- PC Connectivity (optional)
POWER
- Input Voltage Range : 88 - 264 VAC
- Frequency Range : 47 - 63 Hz
- Power consumption : 75 W max
